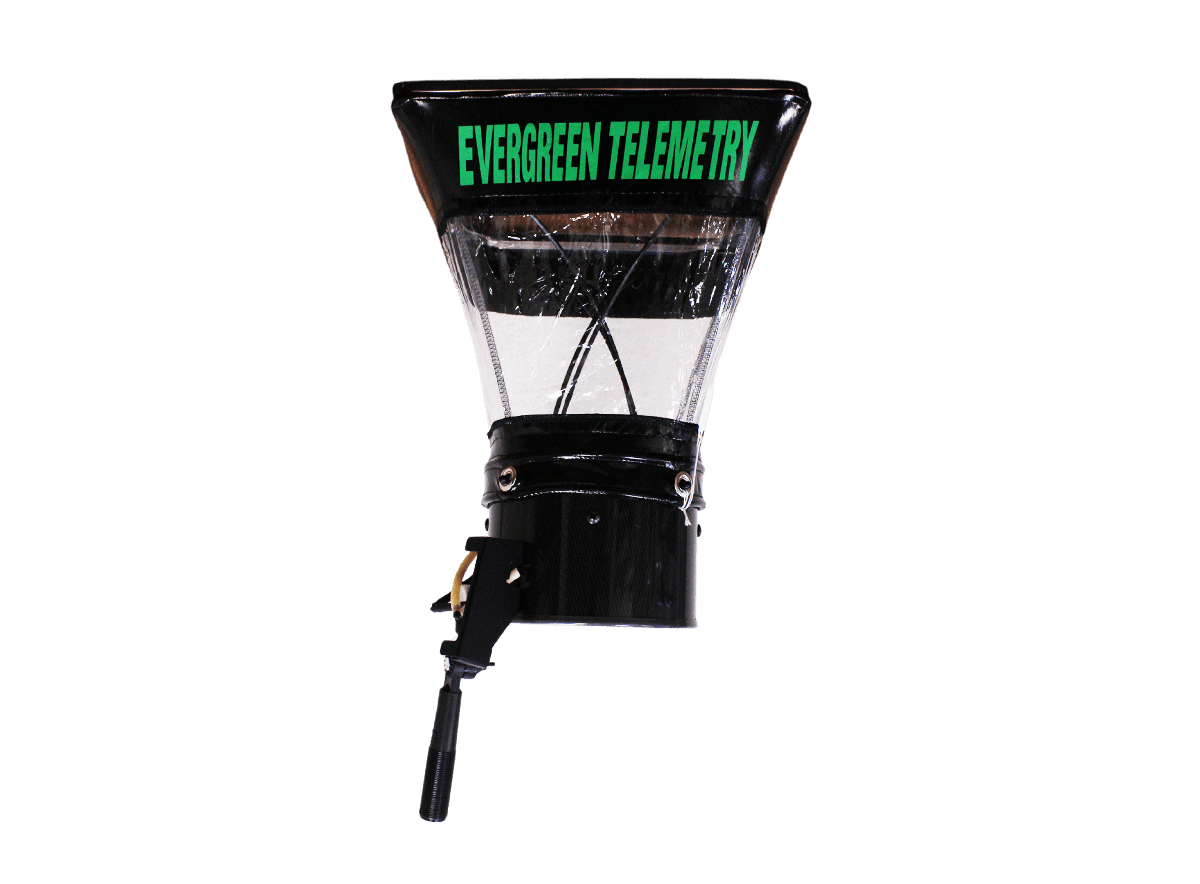

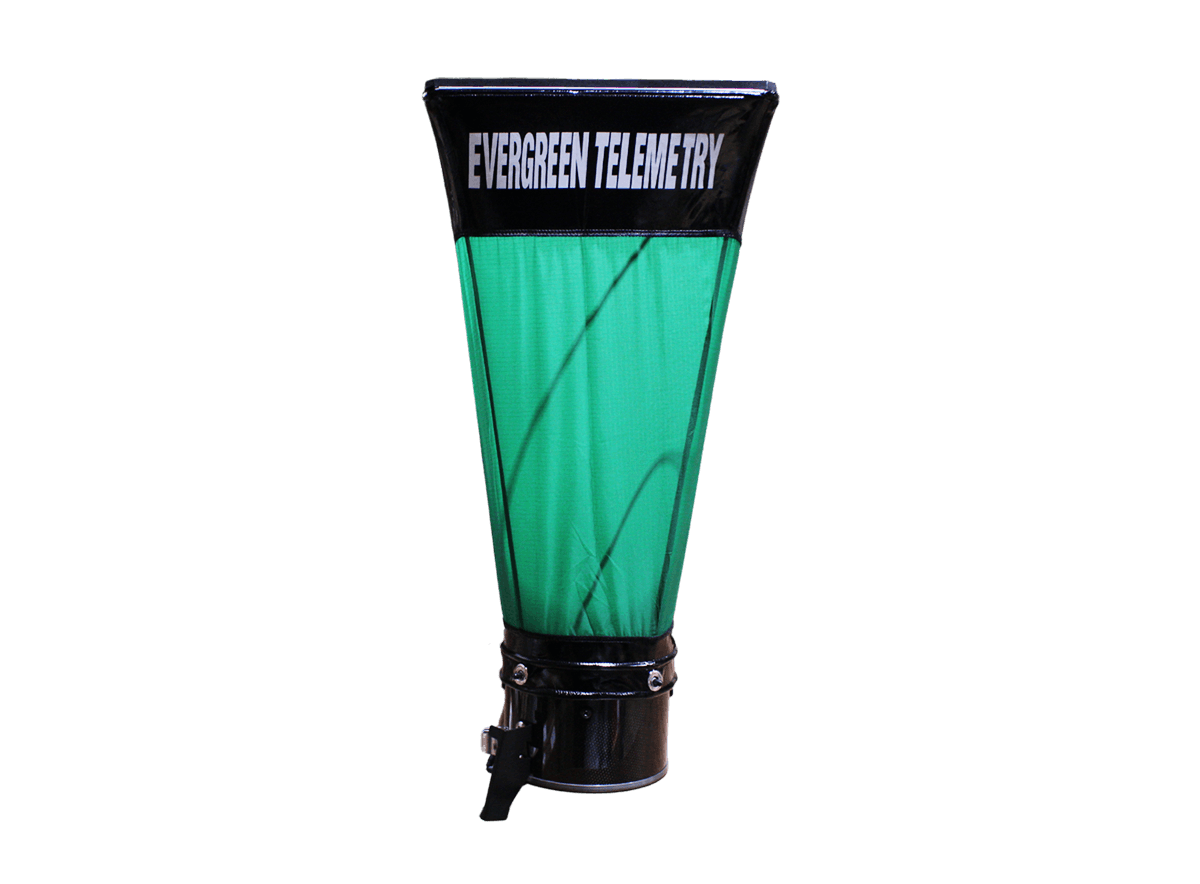

Product Description – 8″ Capture Hood (CH-8D)

The 8″ Capture Hood (CH-8D) is specifically designed for low-flow airflow measurement in tight, confined areas—perfect for small exhausts like those found in bathrooms, stalls, and low-volume return vents. With a compact 8″ carbon fiber base and dual skirt options, this hood offers precise measurement in challenging environments where standard hoods won’t fit.

The CH-8D is ultra-lightweight and easy to transport, making it ideal for quick diagnostics in healthcare, commercial restrooms, or retrofit buildings. Built with Evergreen durability and efficiency in mind, it’s the go-to hood for low CFM applications.

What’s Included:

• 1 8″ Diameter Carbon Fiber Base

• 1 14″×14″×24″ Skirt (for supply/exhaust)

• 1 14″×14″×12″ Skirt (for return)

• 1 14″×14″ Solid Frame

• 2 Sets of Sticks

• 1 2–4′ Extension Pole

• 1 Carrying Case

Note: This unit does not include sensor modules. Please shop K-TAB Kits or Capture Hood Kits if you need modules for airflow measurement.

Additional Information:

• Recommended Range: 15 – 150 CFM

• Use Case: Tight spaces, bathroom exhausts, low-volume air returns

• Weight & Dimensions: Lightweight; compact and portable
